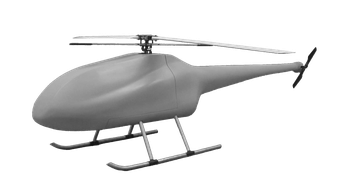

AiD-H35T Unmanned Helicopter System
The AiD-H35T is our smallest helicopter system with a payload capacity of 6 kg including fuel which gives the AiD-H35T an endurance of up to 2 hours when carrying light payloads weighing not more than 2 kg.
Autopilot & Control
The AiD-H systems are equipped with an autopilot including a Ground Control Station for fully autonomous navigation, mission execution and payload control.
Airframe
The AiD-H35T is built from aircraft grade aluminum and composite materials. Its construction featuring a full metal powertrain gives it a reliability unsurpassed in its class. The main rotor is driven by a sealed, lubricated transmissions with hardened steel gears to ensure reliable system life-long function.
As all our airframes it features an outstanding system to payload weight ratio.
|
Technical parameters:
|
|
|
Rotor Diameter: |
2x2400 mm |
| Airframe-length: | 2000 mm |
|
Empty wheight: |
15 kg |
| Engine: |
6 kW Turbine Engine |
| Output power: | 2 kW |
| Fuel tank capacity: |
12 liters |
| Fuel: |
Jet A1/ Diesel |
| Construction: |
composites and aircraft grade aluminum |
|
|
|
|
Performance parameter:
|
|
| Endurance: | 1 hour per 10 ltr. fuel |
|
Maximum payload: |
20 kg @ sea level |
|
Speed: |
0 ~ 120 km/h |
|
Altitude: |
10 ~ 3000 m |
|
Wind conditions: |
up to 7 Bft. or 75km/h wind speed |
|
Temperature range: |
-15°C to +45°C |
|
|
|
